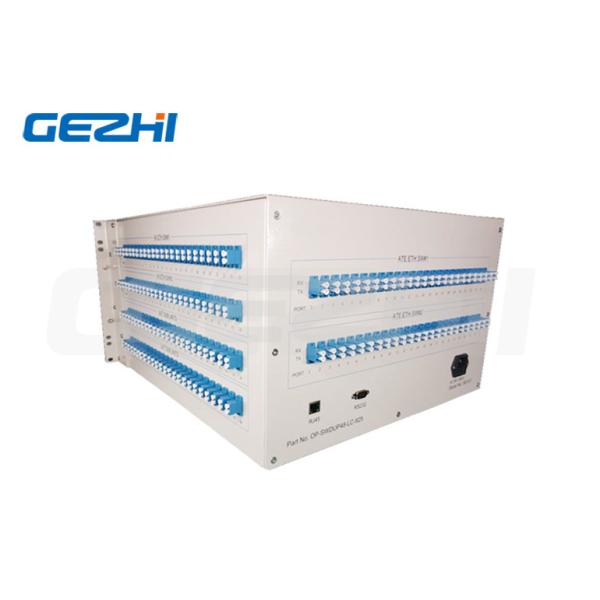

High Efficiency 48*2x4 Optical Switch Matrix with SerialNet and 1260~1650nm Wavelength Range for Automatic Measurement

Brand Name : GEZHI or OEM

Model Number : Optical Switch Matrix

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : US$2888-US$5888

Payment Terms : T/T,Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Wavelength Range : 1260~1650 nm or customized

Contact Now

High efficiency 48×2×4 Optical Switch Matrix for Automatic Measurement
Product Overview

The 48×2×4 Optical Switch Matrix is a high-performance light path control device designed for automatic measurement applications. This rackmount system features 48 pieces of 2×4 synchronous switch light path combinations, providing reliable optical path conversion and control capabilities.

The optical switch can be controlled through multiple methods: via 48 buttons on the front panel, short-range RS-232 serial port communication, or remote RJ45 Ethernet communication. Equipment status and light path configurations are clearly displayed using green and red LED indicators.

Key Features
  • SerialNet connectivity for flexible control options
  • High reliability and stability for continuous operation
  • LED display panel for visual status monitoring
  • Convenient operation with multiple control interfaces
  • Transparent signal transmission
  • Configurable channel and time interval automatic scanning
  • RS232 control and RJ45 Ethernet remote management
Applications

FITL (Fiber In The Loop)

Automatic Measurement Systems

Optical Network Remote Monitoring

Cable Monitoring and Maintenance Systems

High Efficiency 48*2x4 Optical Switch Matrix with SerialNet and 1260~1650nm Wavelength Range for Automatic Measurement
Technical Specifications
Parameter Unit 48×2×4
Wavelength Range nm 1260~1650 or customized
Testing Wavelength nm 1310/1550 or customized
Insertion Loss (Max) dB ≤1.5
Return Loss dB SM ≥ 50
Crosstalk dB ≤-55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.20
Repeatability dB ≤0.02
Switching Time ms ≤10 (Adjacent Channel)
Optical Power mW ≤500
Fiber Type um 9/125
Connector / FC, SC, LC, ST, SMA or customized
Monitor Port / RJ45 & RS232 or customized
Working Power Supply (Plug Type) V AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature ℃ -10~+60
Storage Temperature ℃ -40~+85
Rack mount Dimensions mm 6U: 483×500×267mm
Ordering Information

OSW-X×X-X-XX-X-XX-XX-XX-XX

Component Options
OSW 48×2×4 S=Specify
Mode S=SM M=MM
Wavelength 85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm S=Specify
Package 1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify
Fiber Type M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify
Fiber Diameter AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V
Connector 00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify
Note: S=Specify indicates custom specifications available upon request
